Sound Masking: Direct-Field vs. Plenum

What sound masking is — and is not

Masking is not soundproofing. Walls, seals, and ceiling construction still do the blocking. Masking does not make an open office silent. It makes the office more even, so a conversation two desks away is less distracting and speech in an adjacent private office is harder to overhear.

A well-tuned system sounds like steady airflow. A distinct hiss or an obvious louder spot is a reason to check level, spectrum, spacing, and the surrounding finishes rather than simply turn the volume up.

Direct-field systems

Direct-field emitters sit at or just below the ceiling and radiate into the room. They are a practical choice when there is no usable plenum: an exposed deck, an open industrial ceiling, a cloud or baffle ceiling, or a ceiling assembly that will not transmit masking sound consistently. Direct-field emitters can also be installed in a suspended tile ceiling when that layout suits the space.

Because the sound arrives more directly, spacing and aiming matter. Gaps between emitters can create louder and quieter spots as people walk the floor. Follow the selected emitter’s coverage guidance and verify the result in the room; do not assume one spacing rule fits all systems. Some direct-field emitters are small and flush-mounted, while exposed-ceiling installations may use more visible surface or pendant fixtures.

Direct-field is also useful in a defined zone — a reception desk, a small open collaboration area, a healthcare waiting edge — where the rest of the building does not need masking and there is no continuous ceiling cavity to use.

Plenum (in-plenum) systems

In-plenum emitters sit above a suspended ceiling, often aimed at the deck. The sound reflects within the cavity and then passes through the tiles into the occupied space. The source is hidden, and the ceiling becomes part of the sound-distribution path. This is an established option for offices with a suitable drop ceiling.

A plenum system depends on the ceiling doing part of the work. Mineral-fiber tiles pass masking sound differently than metal, wood, or tightly sealed specialty tiles. Return-air openings, light fixtures, and a crowded plenum change the level from bay to bay. Independent zones exist so those differences can be tuned instead of forcing one level on the whole floor.

If the ceiling transmits the sound appropriately and the plenum is accessible, in-plenum can provide a visually discreet installation. Even coverage still depends on the ceiling, speaker layout, and tuning; a hidden source is not a guarantee of better performance.

Side-by-side

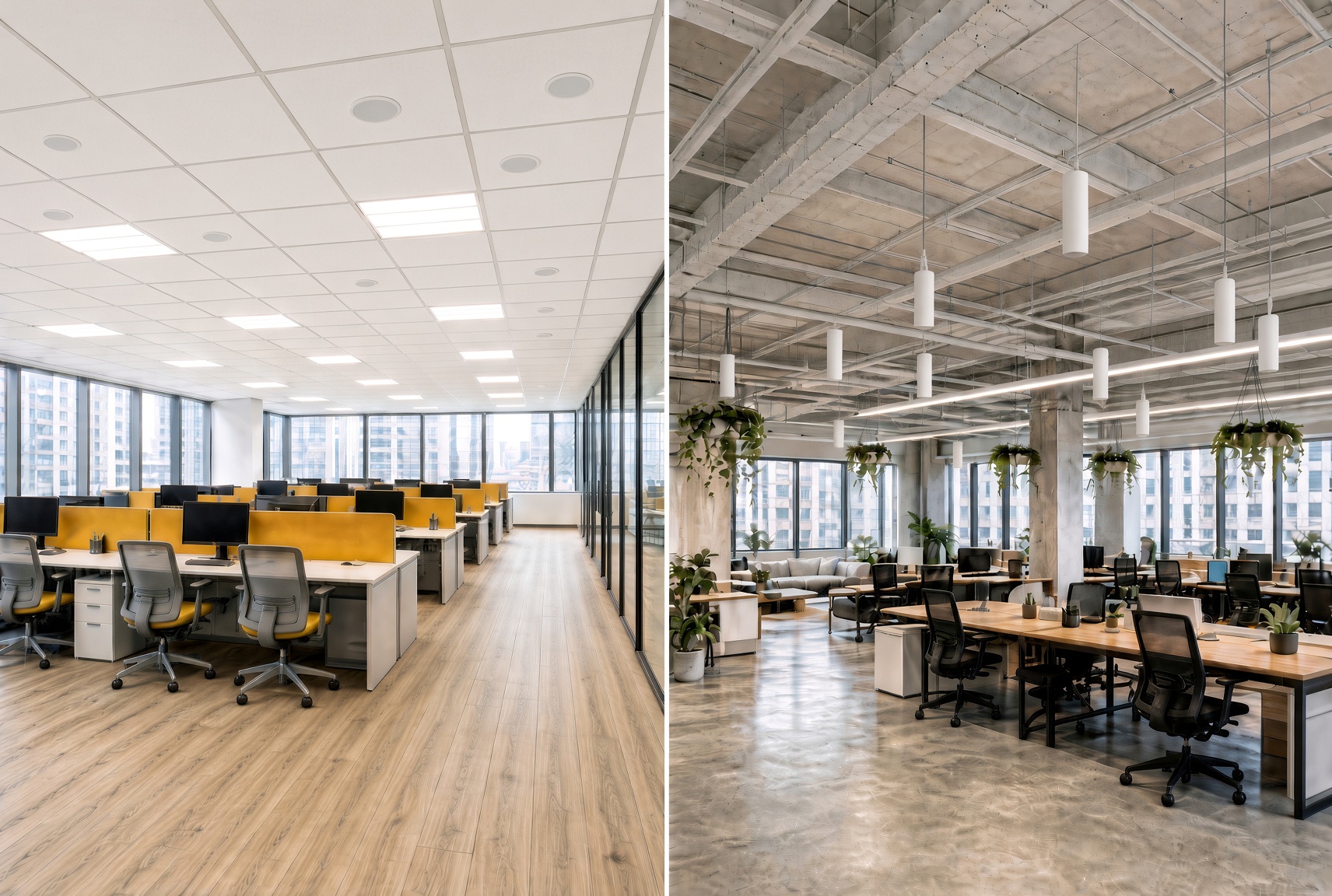

A building can use either method or a combination of both. For example, an exposed-ceiling collaboration area may use direct-field while a neighboring workstation area with a suitable suspended ceiling uses in-plenum. These are options for different zones, not a better-versus-worse choice.

How to choose

1. If there is a continuous suspended acoustic ceiling and an accessible plenum, evaluate in-plenum as a concealed option. Check tile properties, cavity obstructions, and the required coverage before choosing it over a direct-field layout.
2. If the ceiling is exposed, open, or will not pass sound consistently, evaluate direct-field. Do not put up-firing emitters above a ceiling assembly that blocks their sound.
3. Zone by construction and by use. Open desks, a quiet room edge, and a reception counter are not the same level.
4. Introduce the system gradually using a planned ramp-up where the system supports it. Starting at the final level immediately can make the change unnecessarily noticeable.
5. Measure after furniture is in. A layout change, a new hard wall, or a different tile changes the field.

What a poor installation sounds like

Either installation method can disappoint if the layout or commissioning does not fit the space. These issues call for assessment and adjustment, not simply treating volume as the only control.

1. One level for the whole floor. Private-office edges are too loud; the open area is still intelligible.
2. Emitters spaced for a brochure, not for this ceiling. People hear the system turn on as they walk.
3. Plenum emitters above metal or sealed tiles that barely pass sound, so the occupied space stays quiet and the plenum is noisy.
4. Direct-field emitters too far apart on an exposed deck, so desks under a speaker are masked and desks between them are not.
5. No commissioning. Factory spectrum and a guess at level. The result is a hiss people complain about, or a system so low it does nothing.
6. Paging or background music on the same path with no plan, so announcements and masking fight each other.

The useful sequence is assessment, layout, installation, measured tuning by zone, and a staged introduction. Occupancy and furniture can change the result after that, so access to level, spectrum, and zone adjustments matters.

Where this shows up

In corporate offices, the usual request is fewer overheard conversations in the open plan and better privacy at private-office doors.

In healthcare-adjacent and consultation spaces, masking can make speech less intelligible outside a room alongside suitable walls, doors, and seals. Education and hospitality shared work areas use it where concentration and conversation privacy share the same space.

Sound masking is not a substitute for a conference-room audio system or for pro audio in a sanctuary. It is a background field for occupied work areas. It can be coordinated with paging when that is part of the building, but daily operation should stay simple.

Frequently asked questions

What is the difference between direct-field and plenum sound masking?

Direct-field emitters radiate into the occupied space from at or below the ceiling. Plenum emitters sit above a suspended ceiling and the sound reaches the room through the tiles. Plenum equipment is hidden and uses the ceiling cavity to distribute sound; direct-field can work with open or suspended ceilings. Uniformity depends on the chosen system, layout, and tuning, not the label alone.

Does sound masking make the office louder?

It adds a low, even background. The point is that speech becomes less intelligible, so the office often feels quieter even though a sound has been added. If it feels loud, the level or spectrum needs adjustment.

Is sound masking the same as soundproofing?

No. Soundproofing limits sound transmission through walls, doors, seals, and other construction. Acoustic absorption controls reflections within a room. Masking adds a designed background sound to make residual speech less intelligible. These approaches solve different problems and can be used together.

Can sound masking work with an open ceiling?

Yes. A direct-field layout can suit an exposed ceiling, with emitters aimed into the occupied space and spaced for even coverage. An in-plenum approach needs a suitable ceiling cavity and a ceiling assembly that transmits the sound into the room.

Can the system be adjusted after installation?

It should be. Zones, level, and spectrum are tuned at commissioning and can be changed when the layout or occupancy changes. A staged increase after install is normal.

Which method does Media Nexus install?

Both. The ceiling, the occupied zones, and the privacy goal decide. A building with mixed ceilings often gets both methods, each in its own zone.
